RICO MICRO V2 640 1X, 25mm Multifunction Thermal Weapon Sight

MSRP $4,999.00
SKU: RH25V2
UPC: 850048751354
Manual: Download
Datasheet: Download
Objective Focal Length: 25mm
Device Technology: Thermal Imaging
Sensor Resolution: 640×480
Detection Range: 1375 Yards
Sensor Pixel Size: 12μm
Sensor Frame Rate: 60hz
Optical Magnification: 1X
Digital Magnification: 4X
Objective Diameter: 25mm
Objective F#: 1.0
Onboard Recording: Yes

The RICO MICRO has been regarded as one of the most powerful and versatile thermal optics on the market. The new RH25 V2 is an evolution that keeps the well-known compact form factor and advanced feature set, while adding user-requested features and system enhancements focused on improving image quality and ease-of-use.

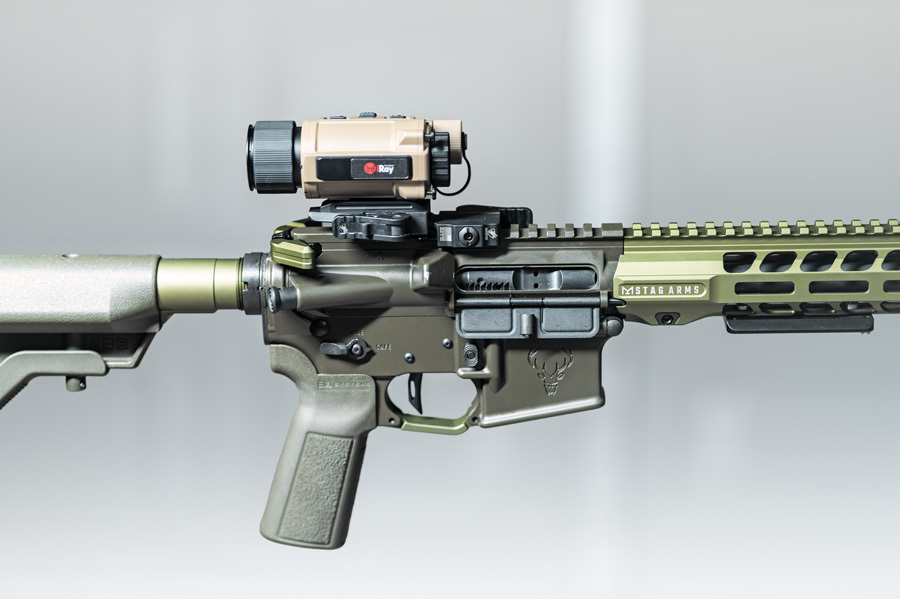

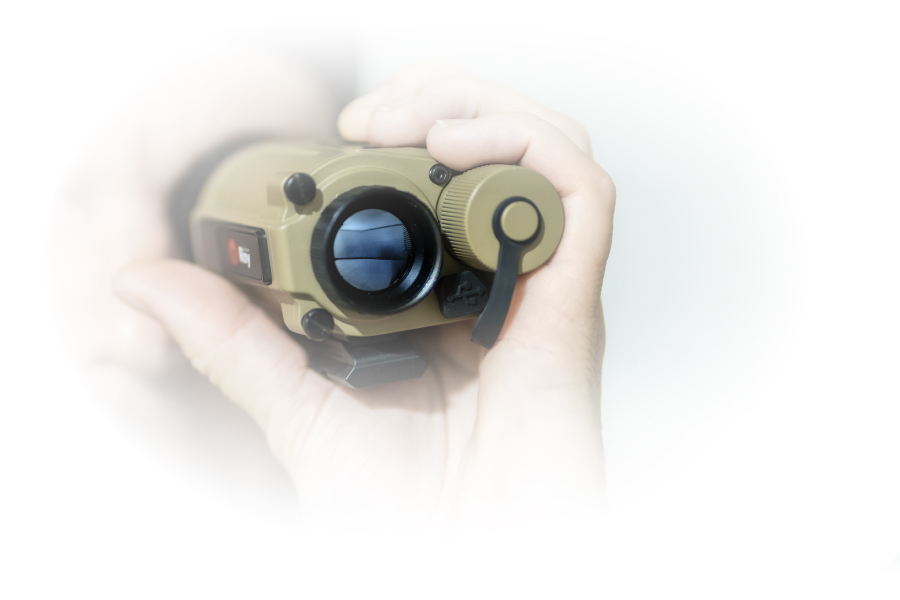

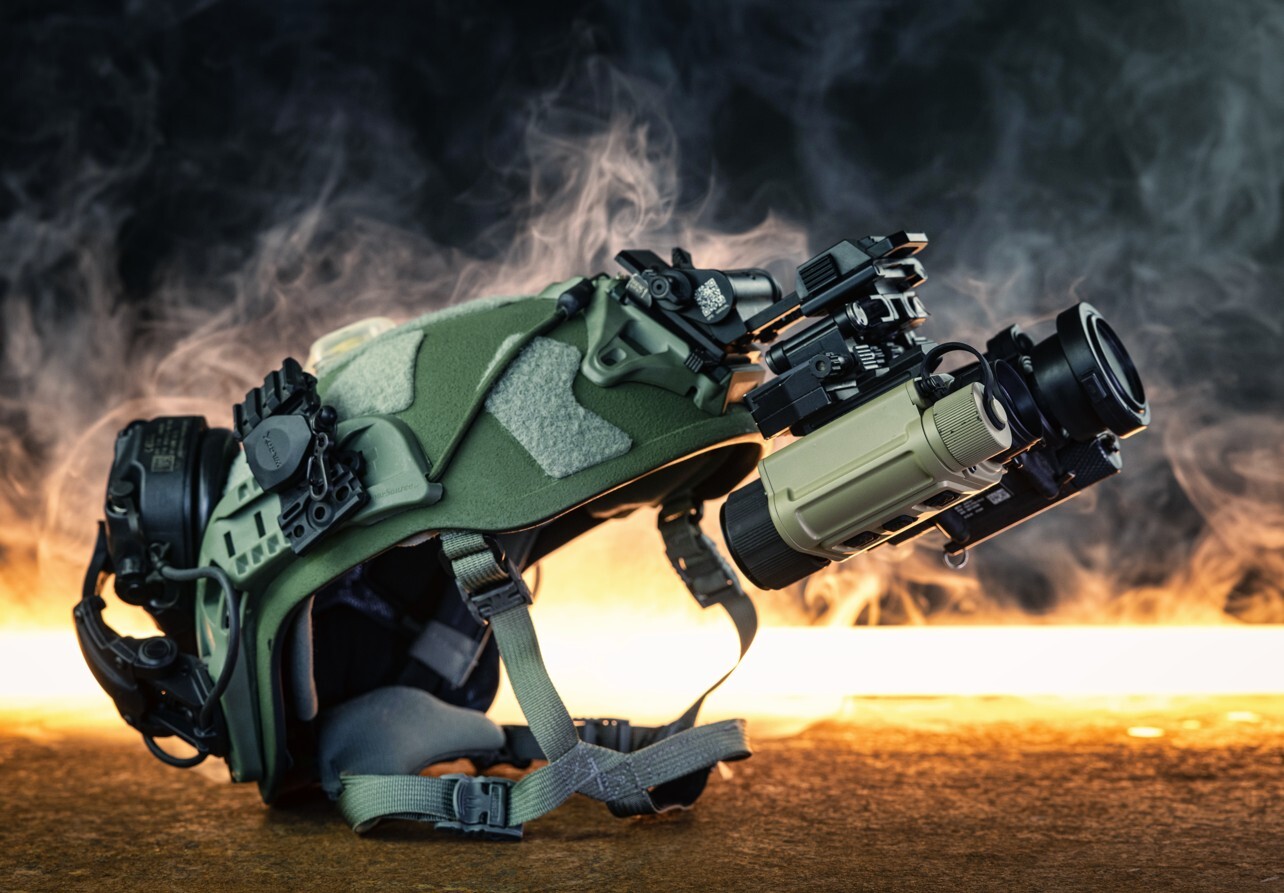

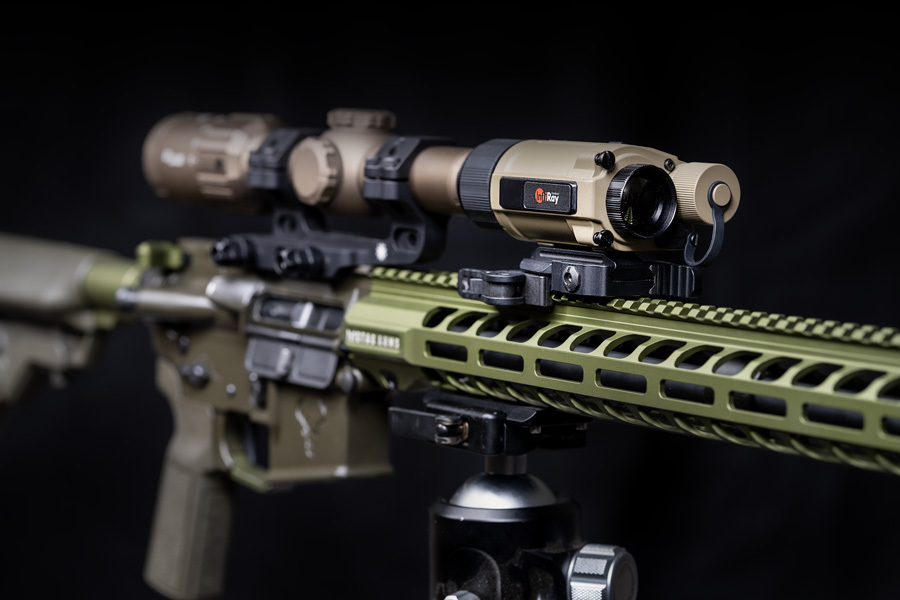

In its newest variation, the RH25 V2 has been updated to provide users with powerful enhancements while retaining the versatility that our customers love; use it as a handheld scanner, helmet-mounted monocular, weapon sight, or thermal clip-on. New models feature a machined magnesium alloy housing to reduce weight. An added USB-C port now allows for simplified file transfer and the ability to power the MICRO from an external battery pack. The internal video recorder now includes crisp audio and 64 GB of internal storage. An improved 1440×1080 AMOLED display and is paired with a new eyepiece that offers more comfortable viewing and clip-on compatibility for optics up to up to 6× magnification.  The new display provides a physical viewing area that is 80% larger than the previous generation, with 97% more total pixels. The MICRO V2 also uses InfiRay’s latest 12 µm sensor, an improved NETD rating of ≤18mK, and a manual-focus f/1.0 objective lens to create an image that is unlike anything in its class.



  • Laser Specifications

  • Optics

    Objective Focal Length

    25mm

    Detection Range

    1375 Yards

    Optical Magnification

    1X

    Digital Magnification

    4X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    17.5

    Vertical Angular Field of View

    13.1

    Objective Diameter

    25mm

    Objective F#

    1.0

    Focusing Mechanism

    Manual Focus

    Eye Relief

    45mm

    Diopter Range

    -5 to +2

    Display Type

    AMOLED

    Display Resolution

    1440×1080

  • Features & Performance

    Reticle

    7

    Color Palettes

    White Hot, Black Hot, Red Hot, Color

    Stand-by Mode

    Yes

    Picture-in-Picture

    No

    Image Capture

    Yes

    Mobile App

    Yes

    Wifi

    Yes

    User-Updatable Firmware

    Yes

    Connector Output

    Power/Data

    Connector Type

    USB-C

    Onboard Recording

    Yes

    Storage Capacity

    64GB

    Power Source

    USB-C External, 18650 Battery

    Run Time

    6.5+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

  • Physical

    Height

    1.88

    Width

    2.55

    Length

    4.52

    Housing Material

    Magnesium Alloy

    Weight

    11.3 oz

  • Sensor Specifications

    Sensor Type

    InfiRay MICRO II

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640×480

    Sensor Pixel Size

    12μm

    Sensor Frame Rate

    60hz

    Thermal Sensitivity

    <15mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

  • Laser Specifications

  • Optics

    Objective Focal Length

    25mm

    Detection Range

    1375 Yards

    Optical Magnification

    1X

    Digital Magnification

    4X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    17.5

    Vertical Angular Field of View

    13.1

    Objective Diameter

    25mm

    Objective F#

    1.0

    Focusing Mechanism

    Manual Focus

    Eye Relief

    45mm

    Diopter Range

    -5 to +2

    Display Type

    AMOLED

    Display Resolution

    1440×1080

  • Features & Performance

    Reticle

    7

    Color Palettes

    White Hot, Black Hot, Red Hot, Color

    Stand-by Mode

    Yes

    Picture-in-Picture

    No

    Image Capture

    Yes

    Mobile App

    Yes

    Wifi

    Yes

    User-Updatable Firmware

    Yes

    Connector Output

    Power/Data

    Connector Type

    USB-C

    Onboard Recording

    Yes

    Storage Capacity

    64GB

    Power Source

    USB-C External, 18650 Battery

    Run Time

    6.5+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

  • Physical

    Height

    1.88

    Width

    2.55

    Length

    4.52

    Housing Material

    Magnesium Alloy

    Weight

    11.3 oz

  • Sensor Specifications

    Sensor Type

    InfiRay MICRO II

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640×480

    Sensor Pixel Size

    12μm

    Sensor Frame Rate

    60hz

    Thermal Sensitivity

    <15mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic
