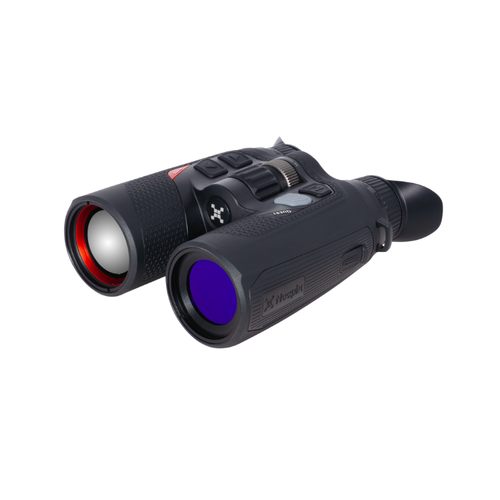

QUEST S50R Rangefinding Thermal Binocular 1280x1024 50 mm

MSRP $4,999.00
SKU: QUEST-S50R
UPC: 850048751705
Detection Range: 2850 Yards
Optical Magnification: 2X
Device Technology: Thermal Imaging
Objective Focal Length: 50mm
Sensor Resolution: 1280x1024
Sensor Pixel Size: 12μm
Digital Magnification: 8X
Objective F#: 0.9
Objective Diameter: 50mm
Sensor Frame Rate: 60hz
Onboard Recording: Yes

QUEST S50R Rangefinding Thermal Binocular 2x 1280×1024 50mm LRF

QUEST binoculars deliver a comfortable and intuitive thermal viewing experience by allowing users to scan with both eyes and both hands, just like traditional daylight binoculars. The QUEST S50R introduces high-resolution 1280 thermal performance to the QUEST platform, pairing a 1280×1024 thermal sensor with a powerful 50 mm f/0.9 germanium objective lens.

This combination provides enhanced image detail, improved target identification, and increased situational awareness at extended distances. Dual AMOLED displays deliver a vivid, high-contrast image with full resolution to each eyepiece for a natural, fatigue-reducing viewing experience.

Developed for hunters who value comfort during long scanning sessions, the QUEST S50R builds on the proven QUEST design while elevating image performance. Integrated laser rangefinding, Reality+ image processing, and independent diopter adjustment allow users to fine-tune the view to their preferences.

The binocular configuration provides excellent balance and stability, making the QUEST S50R ideal for extended observation, scanning large areas, and precise target confirmation in low-light conditions.

  • High-resolution 1280×1024 thermal sensor for superior image clarity
  • Powerful 50 mm f/0.9 germanium objective lens for long-range performance
  • Dual AMOLED displays with full resolution to each eyepiece
  • Integrated laser rangefinder for real-time distance measurement
  • Reality+ image processing for enhanced contrast and detail
  • Independent diopter adjustment for personalized viewing comfort
  • Internal USB-C rechargeable battery with auxiliary 18650-style battery support
  • Includes adjustable binocular harness for comfortable all-night use
  • Onboard photo, video, and audio recording

  • Laser Specifications

  • Optics

    Detection Range

    2850 Yards

    Optical Magnification

    2X

    Objective Focal Length

    50mm

    Display Type

    AMOLED

    Eye Relief

    25mm

    Digital Magnification

    8X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    14.0°

    Horizontal Angular Field of View

    17.5°

    Focusing Mechanism

    Manual Focus

    Objective F#

    0.9

    Objective Diameter

    50mm

    Display Resolution

    1920x1200

    Objective Lens Material

    Germanium

  • Features & Performance

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1000 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    Stand-by Mode

    Yes

    Run Time

    5+

    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack

    Warranty

    5 Years

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

    Connector Type

    USB-C

    External Power Source

    USB-C

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Ingress Protection

    IP67

  • Physical

    Housing Material

    Polymer

    Weight

    24.69

    Height

    2.60

    Width

    5.43

    Length

    6.91

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Resolution

    1280x1024

    Sensor Type

    Nocpix 1280

    Sensor Pixel Size

    12μm

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Thermal Sensitivity

    <15mk

    Sensor Frame Rate

    60hz
