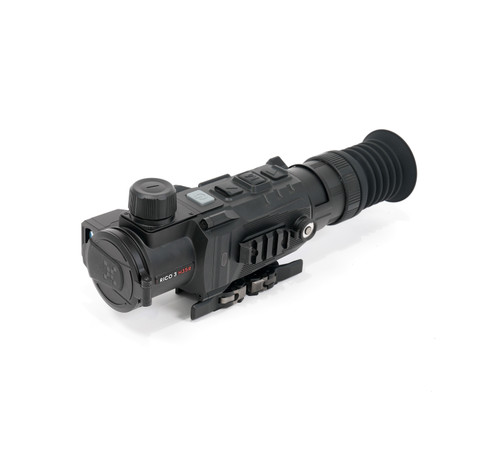

NOCPIX RICO3 H35R Thermal Weapon Sight 640x512 35mm

MSRP $3,699.00
SKU: RICO3-H35R
UPC: 850048751781
Manual: Download
Datasheet: Download
Detection Range: 1990 Yards
Optical Magnification: 2X
Device Technology: Thermal Imaging
Sensor Resolution: 640×512
Sensor Pixel Size: 12μm
Digital Magnification: 8X
Objective F#: 1.0
Objective Diameter: 35mm
Sensor Frame Rate: 60hz
Onboard Recording: Yes
Objective Focal Length: 35mm

The RICO 3 H35R delivers flagship-level image quality in a more versatile package, making it an ideal choice for hunters who prioritize field of view and flexibility. Its 640×512, 12 μm sensor and 2X base magnification provide outstanding thermal detail and wider situational awareness for scanning and engaging at varying distances. An integrated 1,600-yard laser rangefinder, onboard ballistic calculations, and a 10-hour battery ensure confidence throughout an entire night afield. Combined with Reality+ 2.0 image processing, a circular AMOLED display, and an intuitive user interface, the H35R offers high-performance thermal capability in an approachable configuration. Additional features include a quick-detach mounting system, spare battery, magnetic charging port, recoil-activated video, and picture-in-picture mode.

  • The upgraded 1600 yard Laser Rangefinder on the RICO 3 completely redefines long-range accuracy, crushing both previous generations and the best competitors on the market.

  • The RICO 3’s NBP-8 battery is purpose-built for uninterrupted overnight hunting. Delivering up to 10 hours of runtime per pack—and a reliable 7 hours even in extreme sub-zero weather down to -4°F— ensuring fewer battery swaps when it matters most.

  • Laser Specifications

  • Optics

    Detection Range

    1990 Yards

    Optical Magnification

    2X

    Display Type

    AMOLED

    Eye Relief

    70mm

    Digital Magnification

    8X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    10.1°

    Horizontal Angular Field of View

    12.6°

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Objective Diameter

    35mm

    Display Resolution

    2560×2560

    Objective Focal Length

    35mm

    Objective Lens Material

    Germanium

  • Features & Performance

    Run Time

    10

    Power Source

    USB-C External, NBP-8 Li-ion Battery Pack

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1600 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Warranty

    5 Years

    Reticle

    8 (1 Dynamic, 6 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C

  • Environmental Specifications

    Operating Temperature Range

    -4°F to 122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Magnesium Alloy

    Weight

    29.10oz

    Height

    3.43

    Width

    3.43

    Length

    8.90

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640×512

    Sensor Type

    Nocpix 640

    Sensor Pixel Size

    12μm

    Thermal Sensitivity

    <15mk

    Sensor Frame Rate

    60hz

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic
