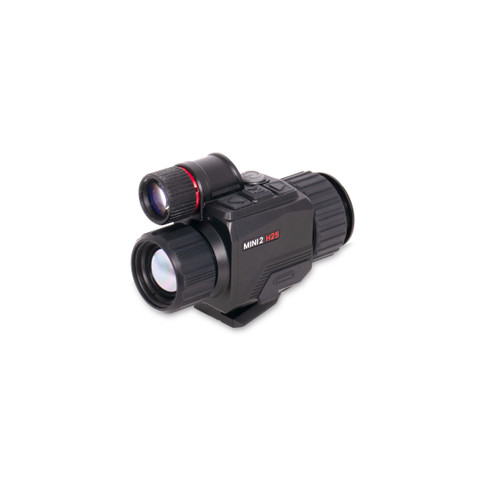

NOCPIX MINI2 H25 Helmet-Mountable Thermal Monocular 640x512

MSRP $2,999.00
SKU: MINI2-H25
UPC: 850048751767
Manual: Download
Datasheet: Download
Detection Range: 1420 yards
Optical Magnification: 1X
Device Technology: Thermal Imaging
Sensor Resolution: 640x512 NV 960x540
Sensor Pixel Size: 12 µm
Digital Magnification: 4x
Objective F#: 1.0
Objective Diameter: 25mm
Sensor Frame Rate: 60hz
Onboard Recording: Yes
Objective Focal Length: 25 mm

The Nocpix MINI2 H25 is a compact, lightweight thermal imaging device engineered for both handheld and helmet-mounted operation. Its versatile design enables seamless transition between use as a handheld monocular and integration with a helmet-mounting system for hands-free applications. Equipped with a high-performance 60 Hz, 12 μm thermal sensor and advanced Reality+ image processing, the MINI 2 delivers exceptional image clarity and detail across a wide range of conditions. The system features a 640×512 resolution thermal core paired with a 1280×1024 AMOLED display, providing a sharp, high-contrast viewing experience within a highly portable form factor. In addition to thermal imaging, the MINI2 incorporates digital night vision functionality with optional thermal overlay, allowing users to utilize fusion imaging for enhanced target recognition and situational awareness. The device also includes onboard audio and video recording capabilities, supported by 32 GB of internal storage, enabling users to capture, store, and review critical moments directly from the unit.

  • Dual-sensor imaging system allows the user to transition between digital night vision, thermal, and thermal fusion overlay
  • Lightweight helmet mounted design with integrated dovetail shoe
  • Internal battery and the included external helmet mountable battery pack allows 4+ hours of operation
  • Onboard photo, video, and audio recording.

  • Laser Specifications

  • Optics

    Detection Range

    1420 yards

    Optical Magnification

    1X

    Display Type

    AMOLED

    Eye Relief

    25mm

    Digital Magnification

    4x

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    14.1°

    Horizontal Angular Field of View

    17.6°

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Objective Diameter

    25mm

    Display Resolution

    960x540

    Objective Focal Length

    25 mm

    Objective Lens Material

    Germanium

  • Features & Performance

    Run Time

    7+

    Power Source

    USB-C External, NBP-7 Li-ion Battery Pack

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1600 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    32GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Warranty

    5 Years

    Reticle

    8 (1 Dynamic, 6 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C, external battery pack

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Aluminum

    Weight

    8.47oz

    Height

    2.54"

    Width

    1.72"

    Length

    4"

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Resolution

    640x512 NV 960x540

    Sensor Type

    Nocpix 640

    Sensor Pixel Size

    12 µm

    Thermal Sensitivity

    <15mk

    Sensor Frame Rate

    60hz

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic
