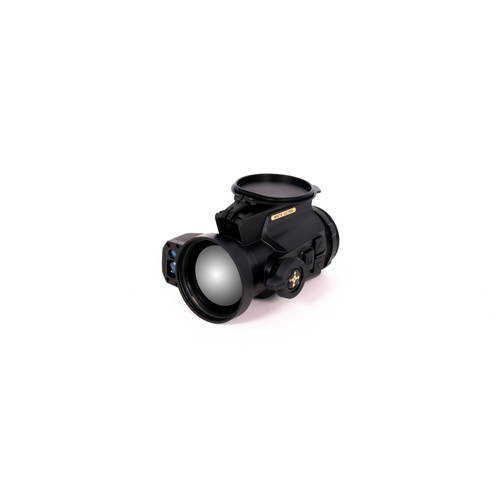

MATE Ultra 1280 60mm Clip-On Thermal Weapon Sight w/ LRf
MSRP
$5,999.00
| Objective Focal Length: | 60mm |
| Detection Range: | 3390 Yards |
| Optical Magnification: | 1X |
| Device Technology: | Thermal Imaging |
| Sensor Resolution: | 1280x1024 |
| Sensor Pixel Size: | 12μm |
| Objective F#: | 1.0 |
| Objective Diameter: | 60mm |
| Sensor Frame Rate: | 60hz |
| Onboard Recording: | Yes |
The Mate Ultra represents the next generation of thermal clip-on technology, allowing hunters to convert their existing daytime optic into a powerful thermal system without changing their shooting setup. Built around a 1280×1024 high-resolution thermal sensor with ≤15 mK sensitivity, the Mate Ultra captures subtle heat signatures with exceptional clarity, making it easier to identify game through brush, across open terrain, or in challenging weather conditions. A large 60mm objective lens gathers more thermal energy for enhanced long-range detection and improved image detail. Advanced image processing algorithms and Reality+ technology help maintain sharp visuals as magnification changes, ensuring a clear and stable image throughout the entire zoom range. With a 60 Hz refresh rate and shutterless imaging, the Mate Ultra delivers smooth, uninterrupted visuals that keep fast-moving targets sharp and easy to track. Designed for precision shooting, the system maintains consistent point-of-impact alignment, even after repeated mounting and removal from different rifles. An integrated 1,300 yard laser rangefinder with ballistic calculation provides accurate distance data and real-time aiming correction for confident shot placement. Built with a lightweight magnesium alloy housing and powered by widely available 18650 rechargeable batteries, the Mate Ultra combines durability, precision, and advanced thermal performance in a premium clip-on platform designed for serious hunters.
-
Laser Specifications
-
Optics
- Objective Focal Length
-
60mm
- Detection Range
-
3390 Yards
- Optical Magnification
-
1X
- Display Type
-
AMOLED
- Eye Relief
-
20mm
- Vertical Angular Field of View
-
11.7°
- Horizontal Angular Field of View
-
14.7°
- Focusing Mechanism
-
Manual Focus
- Objective F#
-
1.0
- Objective Diameter
-
60mm
- Display Resolution
-
1920x1200
-
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 1300 yd LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
64GB
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Warranty
-
5 Years
- Run Time
-
4+
- Power Source
-
USB-C External, 18650 Battery
- Connector Type
-
USB-C
- External Power Source
-
USB-C
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
-
IP67
-
Physical
- Housing Material
-
Magnesium Alloy
- Weight
-
19.75 oz
- Height
-
3.07
- Width
-
3.78
- Length
-
5.51
-
Sensor Specifications
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
- Device Technology
-
Thermal Imaging
- Sensor Resolution
-
1280x1024
- Sensor Type
-
Nocpix 1280
- Sensor Pixel Size
-
12μm
- Thermal Sensitivity
-
<15mk
- Sensor Frame Rate
-
60hz
- User Interface
- 3 Button Pad
- Startup Time
- <10 Seconds, Instant from Standby
- Rangefinder
- Integrated 1300 yd LRF
- Color Palettes
- White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
- Non-Uniformity Correction (NUC)
- Manual, Automatic, Semi-Automatic
- Picture-in-Picture
- Yes
- Storage Capacity
- 64GB
- User-Updatable Firmware
- Yes
- Mobile App
- Yes
- One-Shot Zero
- Yes
- NOCPIX
- 1
- Stand-by Mode
- Yes
- Product Family
- MATE
- Sensor Type
- Nocpix 1280
- Thermal Sensitivity
- <15mk
- Display Type
- AMOLED
- Eye Relief
- 20mm
- Product Name
- MATE Ultra 1280 60mm Clip-On Thermal Weapon Sight w/ LRf
- Warranty
- 5 Years
- Operating Temperature Range
- -4°F~122°F
- Vertical Angular Field of View
- 11.7°
- Horizontal Angular Field of View
- 14.7°
- Focusing Mechanism
- Manual Focus
- Manufacturer
- Nocpix
- Housing Material
- Magnesium Alloy
- Display Resolution
- 1920x1200
- Weight
- 19.75 oz
- Height
- 3.07
- Width
- 3.78
- Length
- 5.51
- Run Time
- 4+
- Power Source
- USB-C External, 18650 Battery
- Storage Temperature Range
- -12 to +167F
- Connector Type
- USB-C
- External Power Source
- USB-C
- Country of Manufacture
- China
- Recoil Rating
- 1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
- IP67
- Wifi
- Yes
- Image Capture
- Yes
- Video Output
- Yes
- IRAYUSA
- 1
- IRAY_PROD_ID
- 349
- BRIGHTPEARL
- 1
- BRIGHTPEARL_PROD_ID
- 8559
- UPC
- 850048751743
- UNV
- 1
- UNV_PROD_ID
- 1831
-
Laser Specifications
-
Optics
- Objective Focal Length
-
60mm
- Detection Range
-
3390 Yards
- Optical Magnification
-
1X
- Display Type
-
AMOLED
- Eye Relief
-
20mm
- Vertical Angular Field of View
-
11.7°
- Horizontal Angular Field of View
-
14.7°
- Focusing Mechanism
-
Manual Focus
- Objective F#
-
1.0
- Objective Diameter
-
60mm
- Display Resolution
-
1920x1200
-
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 1300 yd LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
64GB
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Warranty
-
5 Years
- Run Time
-
4+
- Power Source
-
USB-C External, 18650 Battery
- Connector Type
-
USB-C
- External Power Source
-
USB-C
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
-
IP67
-
Physical
- Housing Material
-
Magnesium Alloy
- Weight
-
19.75 oz
- Height
-
3.07
- Width
-
3.78
- Length
-
5.51
-
Sensor Specifications
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
- Device Technology
-
Thermal Imaging
- Sensor Resolution
-
1280x1024
- Sensor Type
-
Nocpix 1280
- Sensor Pixel Size
-
12μm
- Thermal Sensitivity
-
<15mk
- Sensor Frame Rate
-
60hz
