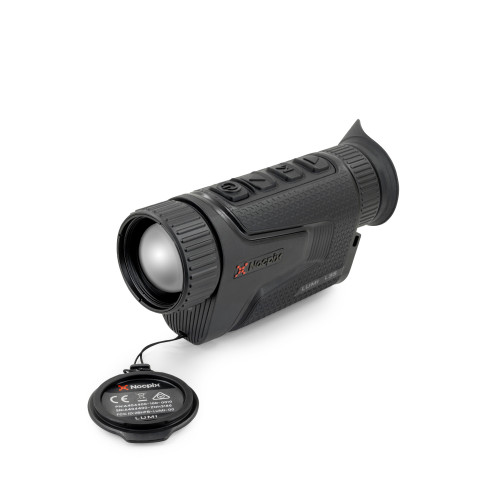

LUMI L35 Compact Thermal Monocular 384x288 35 mm
MSRP
$1,699.00
| Device Technology: | Thermal Imaging |
| Objective Focal Length: | 35mm |
| Sensor Resolution: | 384×288 |
| Detection Range: | 1750 Yards |
| Sensor Pixel Size: | 12μm |
| Sensor Frame Rate: | 50hz |
| Optical Magnification: | 4X |
| Digital Magnification: | 4X |
| Objective F#: | 0.9 |
| Objective Diameter: | 35mm |
| Onboard Recording: | Yes |
LUMI brings the power of thermal observation devices to a compact and user-friendly form-factor for hunters on-the-go. The all-new LUMI series of handheld thermal monoculars features a high quality thermal sensor, available in 384x288 (L35) or 640x512 (H35) paired with a 1024x768 AMOLED display. Available models offer either a 2.5x base magnification (H35) for a wider field of view, or a 4x base magnification (L35) for identifying targets at greater distances.
Our advanced Reality+ image processing algorithm and a ≤18 mK NETD (thermal sensitivity) rating provide sharp, high-contrast images. Powering the LUMI is simple and affordable using common interchangeable 18650 style batteries. As a powerful tool for scouting and scanning, LUMI was designed to be as compact and ergonomic as possible while still offering impressive image detail and clarity; LUMI weighs 12 ounces and easily fits in the palm of the hand, a pocket, or the included MOLLE-compatible case.
- Lightweight and compact design easily fits in a pocket or the include MOLLE-compatible pouch.
- Weatherproof rubberized texture increases durability and is not cold to the touch.
- Powered by a common 18650 style rechargeable battery with a spare battery included.
- Advanced R+ image processing provides enhances image quality during digital zoom.
- Onboard photo, video, and audio recording.
- Comfortable ambidextrous vertical design.
-
Laser Specifications
-
Optics
- Objective Focal Length
-
35mm
- Detection Range
-
1750 Yards
- Optical Magnification
-
4X
- Digital Magnification
-
4X
- Objective Lens Material
-
Germanium
- Vertical Angular Field of View
-
5.7°
- Horizontal Angular Field of View
-
7.5°
- Objective F#
-
0.9
- Objective Diameter
-
35mm
- Focusing Mechanism
-
Manual Focus
- Eye Relief
-
25mm
- Diopter Range
-
-5 to +5
- Display Type
-
AMOLED
- Display Resolution
-
1024×768
-
Features & Performance
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Wifi
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
- Storage Capacity
-
32GB
- Connector Output
-
Power/Data
- Power Source
-
USB-C External, 18650 Battery
- Connector Type
-
USB-C
- Onboard Recording
-
Yes
- Run Time
-
4+
- Warranty
-
5 Years
- Startup Time
-
<10 Seconds, Instant from Standby
- External Power Source
-
USB-C
- Country of Manufacture
-
China
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Ingress Protection
-
IP67
-
Physical
- Length
-
5.63
- Width
-
1.84
- Height
-
2.91
- Weight
-
11.82 oz
- Housing Material
-
Polymer
-
Sensor Specifications
- Device Technology
-
Thermal Imaging
- Sensor Type
-
Nocpix 384
- Sensor Resolution
-
384×288
- Sensor Pixel Size
-
12μm
- Sensor Frame Rate
-
50hz
- Thermal Sensitivity
-
<18mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
- Product Family
- LUMI
- Product Name
- LUMI L35 Compact Thermal Monocular 384x288 35 mm
- Sensor Type
- Nocpix 384
- Thermal Sensitivity
- <18mk
- Non-Uniformity Correction (NUC)
- Manual, Automatic, Semi-Automatic
- Objective Lens Material
- Germanium
- Vertical Angular Field of View
- 5.7°
- Horizontal Angular Field of View
- 7.5°
- Focusing Mechanism
- Manual Focus
- Eye Relief
- 25mm
- Diopter Range
- -5 to +5
- Display Type
- AMOLED
- Display Resolution
- 1024×768
- Color Palettes
- White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
- Yes
- User-Updatable Firmware
- Yes
- Mobile App
- Yes
- One-Shot Zero
- Yes
- Stand-by Mode
- Yes
- Wifi
- Yes
- Image Capture
- Yes
- Video Output
- Yes
- Storage Capacity
- 32GB
- Connector Output
- Power/Data
- Power Source
- USB-C External, 18650 Battery
- Connector Type
- USB-C
- Run Time
- 4+
- Warranty
- 5 Years
- Startup Time
- <10 Seconds, Instant from Standby
- Operating Temperature Range
- -4°F~122°F
- External Power Source
- USB-C
- Country of Manufacture
- China
- Storage Temperature Range
- -12 to +167F
- Ingress Protection
- IP67
- Length
- 5.63
- Width
- 1.84
- Height
- 2.91
- Weight
- 11.82 oz
- Housing Material
- Polymer
- User Interface
- 3 Button Pad
- UPC
- 850048751330
-
Laser Specifications
-
Optics
- Objective Focal Length
-
35mm
- Detection Range
-
1750 Yards
- Optical Magnification
-
4X
- Digital Magnification
-
4X
- Objective Lens Material
-
Germanium
- Vertical Angular Field of View
-
5.7°
- Horizontal Angular Field of View
-
7.5°
- Objective F#
-
0.9
- Objective Diameter
-
35mm
- Focusing Mechanism
-
Manual Focus
- Eye Relief
-
25mm
- Diopter Range
-
-5 to +5
- Display Type
-
AMOLED
- Display Resolution
-
1024×768
-
Features & Performance
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Wifi
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
- Storage Capacity
-
32GB
- Connector Output
-
Power/Data
- Power Source
-
USB-C External, 18650 Battery
- Connector Type
-
USB-C
- Onboard Recording
-
Yes
- Run Time
-
4+
- Warranty
-
5 Years
- Startup Time
-
<10 Seconds, Instant from Standby
- External Power Source
-
USB-C
- Country of Manufacture
-
China
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Ingress Protection
-
IP67
-
Physical
- Length
-
5.63
- Width
-
1.84
- Height
-
2.91
- Weight
-
11.82 oz
- Housing Material
-
Polymer
-
Sensor Specifications
- Device Technology
-
Thermal Imaging
- Sensor Type
-
Nocpix 384
- Sensor Resolution
-
384×288
- Sensor Pixel Size
-
12μm
- Sensor Frame Rate
-
50hz
- Thermal Sensitivity
-
<18mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
