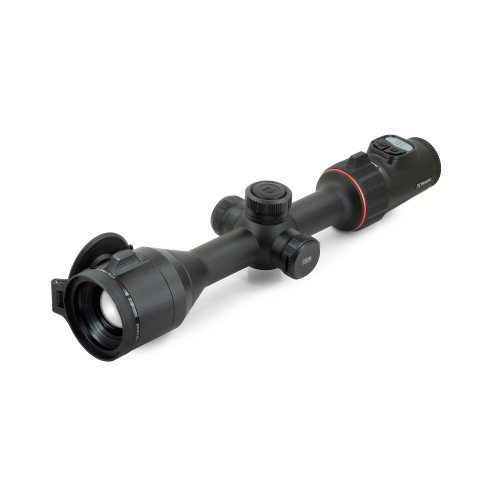

ACE L35 Thermal Weapon Sight Oc. Magnifier 384x288 35mm

MSRP $2,499.00
SKU: ACE L35
UPC: 850048751484
Manual: Download
Datasheet: Download
Sensor Pixel Size: 12μm
Objective Focal Length: 35mm
Digital Magnification: 4X
Objective F#: 0.9
Objective Diameter: 35mm
Sensor Frame Rate: 60hz
Detection Range: 1970 Yards
Optical Magnification: 3X
Device Technology: Thermal Imaging
Onboard Recording: Yes
Sensor Resolution: 384×288

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 18 mK NETD sensor for an incredibly detailed and precise image.

New for 2025, the ACE L35 offers a more affordable option in the ACE line for predator and hog hunters who don't require a laser rangefinder or higher resolution sensor. Packing tremendous value, the ACE L35 retains all other features of ACE line of thermal rifle scopes.



  • Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.
  • Uses common 18650 style rechargeable batteries.
  • A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
  • Charge through the unit with a unique lock-out USB-C port design.

  • Laser Specifications

  • Optics

    Display Type

    AMOLED

    Eye Relief

    50mm

    Objective Focal Length

    35mm

    Digital Magnification

    4X

    Diopter Range

    -5 to +5

    Vertical Angular Field of View

    5.7°

    Horizontal Angular Field of View

    7.5°

    Focusing Mechanism

    Manual Focus

    Objective F#

    0.9

    Objective Diameter

    35mm

    Objective Lens Material

    Germanium

    Display Resolution

    2560×2560

    Detection Range

    1970 Yards

    Optical Magnification

    3X

  • Features & Performance

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    64GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    Run Time

    7+

    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Connector Type

    USB-C

    External Power Source

    USB-C

    Country of Manufacture

    China

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Mounting Interface

    QD Picatinny

    Housing Material

    Aluminum Alloy

    Weight

    37.0 oz.

    Height

    2.44

    Width

    3.54

    Length

    13.78

  • Sensor Specifications

    Sensor Type

    Nocpix 384

    Sensor Pixel Size

    12μm

    Thermal Sensitivity

    <18mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Sensor Frame Rate

    60hz

    Device Technology

    Thermal Imaging

    Sensor Resolution

    384×288
