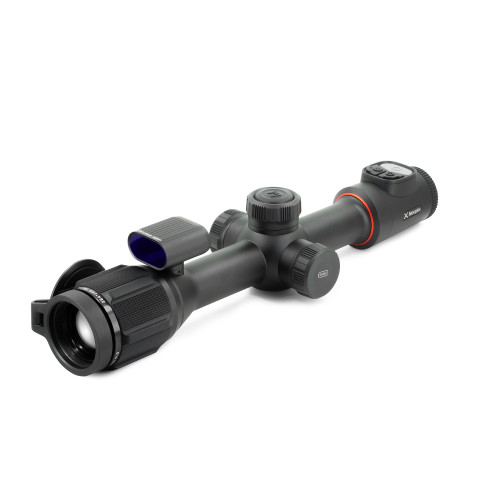

NOCPIX BOLT L35R Thermal Weapon Sight LRF 384 35mm
MSRP
$1,999.00
| SKU: | BOLT-L35R |
| UPC: | 850048751644 |
| Manual: | Download |
| Device Technology: | Thermal Imaging |
| Objective Focal Length: | 35 mm |
| Sensor Resolution: | 384x288 |
| Detection Range: | 1970 Yards |
| Sensor Pixel Size: | 12 µm |
| Sensor Frame Rate: | 50 Hz |
| Optical Magnification: | 3.5X |
| Digital Magnification: | 4X |
| Objective Diameter: | 35 mm |
| Objective F#: | 1.0 |
| Onboard Recording: | Yes |
New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.
-
Laser Specifications
-
Optics
- Objective Focal Length
-
35 mm
- Detection Range
-
1970 Yards
- Optical Magnification
-
3.5X
- Digital Magnification
-
4X
- Objective Lens Material
-
Germanium
- Horizontal Angular Field of View
-
7.5°
- Vertical Angular Field of View
-
5.7°
- Objective Diameter
-
35 mm
- Objective F#
-
1.0
- Focusing Mechanism
-
Manual Focus
- Eye Relief
-
50mm
- Display Type
-
AMOLED
- Diopter Range
-
-5 to +5
- Diopter Range
-
-5 to +5
- Display Resolution
-
1024×768
-
Features & Performance
- Startup Time
-
<10 Seconds, Instant from Standby
- Rangefinder
-
Integrated 1,300 Yard LRF
- Color Palettes
-
White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian
- Picture-in-Picture
-
Yes
- Storage Capacity
-
32 GB
- Connector Output
-
Power/Data
- User-Updatable Firmware
-
Yes
- Mobile App
-
Yes
- One-Shot Zero
-
Yes
- Stand-by Mode
-
Yes
- Warranty
-
5 Years
- Run Time
-
6+
- Power Source
-
USB-C External, 18650 Battery, Built-In Battery Pack
- Reticle
-
8 (7 Static, 1 DIY)
- Connector Type
-
USB-C
- External Power Source
-
USB-C
- Country of Manufacture
-
China
- Wifi
-
Yes
- Onboard Recording
-
Yes
- Image Capture
-
Yes
- Video Output
-
Yes
-
Environmental Specifications
- Operating Temperature Range
-
-4°F~122°F
- Recoil Rating
-
1000 g/s² (300 Win./7mm Mag)
- Ingress Protection
-
IP67
-
Physical
- Length
-
14.8
- Width
-
3.6
- Height
-
3.0
- Weight
-
31.0 oz
- Housing Material
-
T-6063 Aluminum
-
Sensor Specifications
- Device Technology
-
Thermal Imaging
- Sensor Type
-
Nocpix 384
- Sensor Resolution
-
384x288
- Sensor Pixel Size
-
12 µm
- Sensor Frame Rate
-
50 Hz
- Thermal Sensitivity
-
≤20 mk
- Non-Uniformity Correction (NUC)
-
Manual, Automatic, Semi-Automatic
