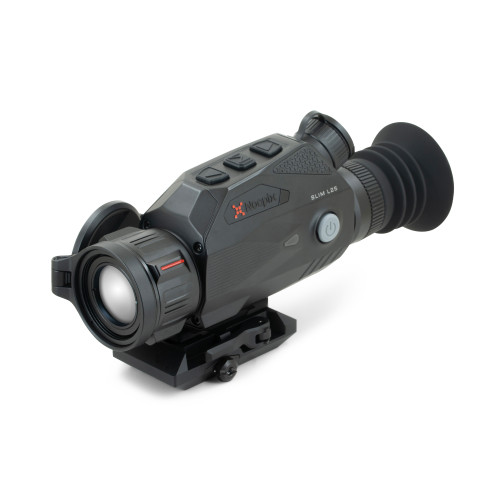

SLIM L25 Multi-function Thermal Optic 384x288 25 mm

MSRP $1,499.00
SKU: SLIM-L25
UPC: 850048751606
Manual: Download
Datasheet: Download
Device Technology: Thermal Imaging
Objective Focal Length: 25 mm
Sensor Resolution: 384×288
Detection Range: 1400 Yards
Sensor Pixel Size: 12 μm
Sensor Frame Rate: 50 Hz
Optical Magnification: 2.5X
Digital Magnification: 4X
Objective Diameter: 25mm
Objective F#: 0.9
Onboard Recording: Yes

The new SLIM series from Nocpix provides the best value and features in a compact optic. Focused on versatility and ease of use, SLIM models can be used as either a handheld monocular or a weapon sight. With the included proprietary quick-detach mounting system a hunter can quickly scan and then re-attach the optic to the rifle while maintaining zero. A magnesium alloy body and quiet, soft-touch buttons provide excellent ergonomics in both handheld and weapon-mounted configurations. The included IRB-2 batteries (flat-top 18650 style cell) are easy to swap–letting you stay out longer with the ability to charge through the optic using a magnetic cable. Generous eye relief and a 1024×768 AMOLED display provide a comfortable and highly detailed viewing and hunting experience.

  • Ambidextrous one-handed design for easy use as a handheld monocular or weapon sight.
  • Recoil-activated video automatically records footage before and after a shot.
  • High-contrast 1024×768 AMOLED display provides increased clarity and detail.
  • Quick-release dual-throw mount with a magnetic alignment aid provides fast and secure return-to-zero (1-MOA) weapon mounting.
  • Uses common 18650 style rechargeable batteries.
  • Available in high and standard-resolution models.
  • Quick, secure charging via the magnetic charging port.

  • Laser Specifications

  • Optics

    Objective Focal Length

    25 mm

    Detection Range

    1400 Yards

    Optical Magnification

    2.5X

    Digital Magnification

    4X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    10.5°

    Vertical Angular Field of View

    7.9°

    Objective Diameter

    25mm

    Objective F#

    0.9

    Eye Relief

    48mm

    Diopter Range

    -5 to +5

    Focusing Mechanism

    Manual Focus

    Display Type

    AMOLED

    Display Resolution

    1024×768

  • Features & Performance

    Reticle

    8 (1 Dynamic, 6 Static, 1 DIY)

    Color Palettes

    White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

    Stand-by Mode

    Yes

    Picture-in-Picture

    Yes

    Storage Capacity

    32GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Connector Type

    USB-C

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

    Power Source

    USB-C External, 18650 Battery

    Run Time

    4+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Length

    8.50

    Width

    2.99

    Height

    1.81

    Weight

    18.70

    Housing Material

    Magnesium Alloy

    Mounting Interface

    QD Picatinny

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    Nocpix 384

    Sensor Resolution

    384×288

    Sensor Pixel Size

    12 μm

    Sensor Frame Rate

    50 Hz

    Thermal Sensitivity

    ≤18 mK

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

  • Laser Specifications

  • Optics

    Objective Focal Length

    25 mm

    Detection Range

    1400 Yards

    Optical Magnification

    2.5X

    Digital Magnification

    4X

    Objective Lens Material

    Germanium

    Horizontal Angular Field of View

    10.5°

    Vertical Angular Field of View

    7.9°

    Objective Diameter

    25mm

    Objective F#

    0.9

    Eye Relief

    48mm

    Diopter Range

    -5 to +5

    Focusing Mechanism

    Manual Focus

    Display Type

    AMOLED

    Display Resolution

    1024×768

  • Features & Performance

    Reticle

    8 (1 Dynamic, 6 Static, 1 DIY)

    Color Palettes

    White Hot, Black Hot, Red Hot, Rainbow, Violet, Crimson, Viridian

    Stand-by Mode

    Yes

    Picture-in-Picture

    Yes

    Storage Capacity

    32GB

    Connector Output

    Power/Data

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Connector Type

    USB-C

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

    Power Source

    USB-C External, 18650 Battery

    Run Time

    4+

    External Power Source

    USB-C

    Warranty

    5 Years

    Startup Time

    <10 Seconds, Instant from Standby

    Country of Manufacture

    China

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Length

    8.50

    Width

    2.99

    Height

    1.81

    Weight

    18.70

    Housing Material

    Magnesium Alloy

    Mounting Interface

    QD Picatinny

  • Sensor Specifications

    Device Technology

    Thermal Imaging

    Sensor Type

    Nocpix 384

    Sensor Resolution

    384×288

    Sensor Pixel Size

    12 μm

    Sensor Frame Rate

    50 Hz

    Thermal Sensitivity

    ≤18 mK

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic
