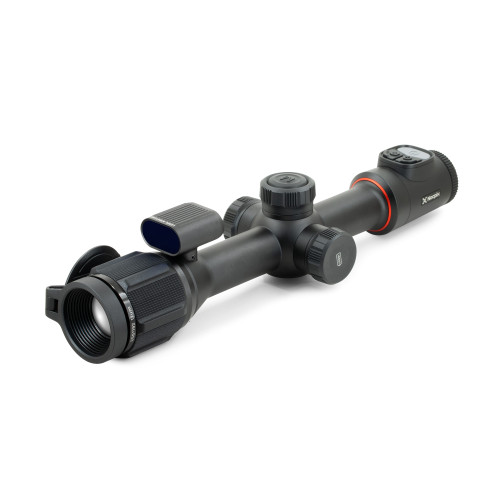

NOCPIX BOLT P25R Thermal Weapon Sight LRF 256 25mm

MSRP $1,199.00
SKU: BOLT-P25R
UPC: 850048751651
Manual: Download
Objective F#: 1.0
Onboard Recording: Yes
Objective Diameter: 25 mm
Digital Magnification: 4X
Optical Magnification: 3.5X
Sensor Pixel Size: 12 μm
Sensor Frame Rate: 50 Hz
Sensor Resolution: 256x192
Objective Focal Length: 25 mm
Device Technology: Thermal Imaging

New for 2025, the BOLT line brings Nocpix thermal performance into an affordable weapon sight platform. Available in two models, the L35 (384×288) and P25 (256×192), both optics feature an integrated laser rangefinder and ballistic calculator, providing long-range precision without breaking the budget. Built for the field, the BOLT combines an internal rechargeable battery with a removable hot-swappable 18650 auxiliary battery for extended run time. Designed to mount like a traditional day optic, it is compatible with standard 30 mm rings and mounts (not included), making it equally at home on bolt-action and semiautomatic rifles. While not as feature-rich as the ACE series, the BOLT models deliver reliable thermal imaging, intuitive controls, and rugged construction in a streamlined package. For the first time, Nocpix offers a budget-friendly option with a built-in rangefinder, making the BOLT line a tremendous value for shooters looking to step into thermal without compromise on critical capabilities.

  • Laser Specifications

  • Optics

    Display Type

    AMOLED

    Eye Relief

    50 mm

    Diopter Range

    -5 to +5

    Focusing Mechanism

    Manual Focus

    Objective F#

    1.0

    Display Resolution

    1024×768

    Objective Diameter

    25 mm

    Vertical Angular Field of View

    5.3°

    Horizontal Angular Field of View

    7.5°

    Horizontal Angular Field of View

    7.0°

    Objective Lens Material

    Germanium

    Digital Magnification

    4X

    Optical Magnification

    3.5X

    Objective Focal Length

    25 mm

  • Features & Performance

    Startup Time

    <10 Seconds, Instant from Standby

    Rangefinder

    Integrated 1300 yd LRF

    Color Palettes

    White Hot, Black Hot, Red Hot, Color, Violet, Crimson, Viridian

    Picture-in-Picture

    Yes

    Storage Capacity

    32 GB

    Run Time

    6+

    Connector Output

    Power/Data

    Power Source

    USB-C External, 18650 Battery, Built-In Battery Pack

    User-Updatable Firmware

    Yes

    Mobile App

    Yes

    One-Shot Zero

    Yes

    Stand-by Mode

    Yes

    Country of Manufacture

    China

    Warranty

    5 Years

    Wifi

    Yes

    Onboard Recording

    Yes

    Image Capture

    Yes

    Video Output

    Yes

    Reticle

    8 (7 Static, 1 DIY)

    Connector Type

    USB-C

    External Power Source

    USB-C

  • Environmental Specifications

    Operating Temperature Range

    -4°F~122°F

    Recoil Rating

    1000 g/s² (300 Win./7mm Mag)

    Ingress Protection

    IP67

  • Physical

    Housing Material

    T-6063 Aluminum

    Weight

    30.7 oz

    Height

    3.0

    Width

    3.6

    Length

    14.8

  • Sensor Specifications

    Sensor Pixel Size

    12 μm

    Thermal Sensitivity

    ≤20 mk

    Non-Uniformity Correction (NUC)

    Manual, Automatic, Semi-Automatic

    Sensor Frame Rate

    50 Hz

    Sensor Resolution

    256x192

    Sensor Type

    Nocpix 256

    Device Technology

    Thermal Imaging
